Description
Comparison & Technical Charts
Comparison: VENUS 150×3.6mm vs. Miniature & Standard Classes
| Feature | Miniature (150×2.5) | VENUS Intermediate (150×3.6) | Standard (150×4.8) |
| Tensile Strength | 8.2 kg (18 lbs) | 18.2 kg (40 lbs) | 22.7 kg (50 lbs) |
| Width Profile | Ultra-Slim | Optimized / Balanced | Wide / Industrial |
| Surface Area | Low (High Pressure) | Moderate (Safe for Data) | High (Maximum Support) |
| Best Application | Electronics / Small Wires | IT Networks / Auto Looms | Power Trunks / HVAC |
| Certifications | UL 94V-2 | UL 94V-2 | UL 94V-2 |

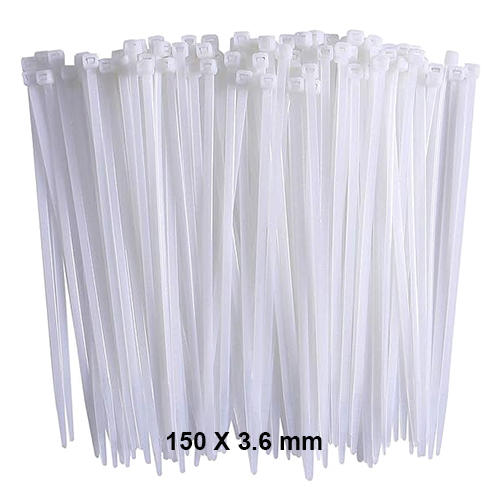

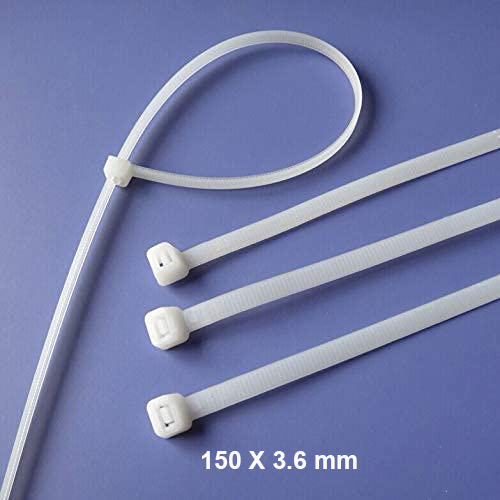

VENUS 150 x 3.6 mm Technical Specifications
| Parameter | Specification |
| Material Grade | 100% Virgin Polyamide 6.6 (PA66) |
| Dimensions | 150 mm (L) X 3.6 mm (W) |
| Min. Loop Tensile | 18.2 kgf / 40 lbs / 178 N |
| Max Bundle Diameter | 35 mm (1.4 inches) |
| Operating Temp. | -10 C to +85 C |
| Flammability | Self-extinguishing (UL 94 V-2) |
