Description
Comparison & Technical Charts
Comparison: Tycab 350×3.6mm vs. Competitor Classes
| Feature | Standard (200×3.6) | Tycab XL (350×3.6) | Heavy Duty (350×4.8) |
| Max Bundle Dia. | 45 mm | 90 mm (3.5 inches) | 95 mm |
| Tensile Strength | 18.2 kg (40 lbs) | 18.2 kg (40 lbs) | 22.7 kg (50 lbs) |
| Profile Width | 3.6 mm | 3.6 mm (Sleek) | 4.8 mm (Bulky) |
| UV Protection | Advanced UV Black | Advanced UV Black | Industrial Grade |
| Best Application | Small HVAC/Sensors | Solar Arrays / Large Piping | Heavy Utility/Poles |

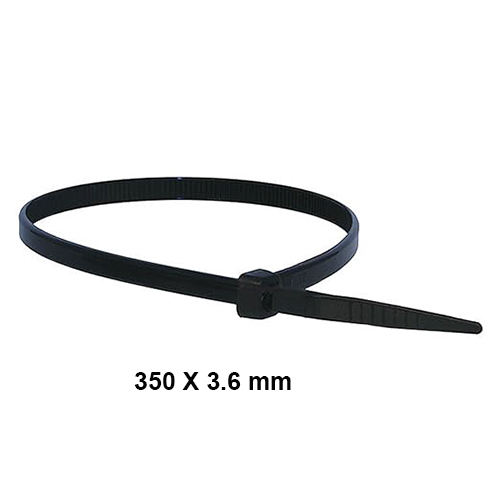

Tycab 350 x 3.6 mm Technical Data
| Parameter | Specification |
| Nominal Length | 350 mm (14 inches) |
| Strap Width | 3.6 mm |
| Min. Tensile Strength | 18.2 kg / 40 lbs / 177 N |
| Max Bundle Diameter | 90 mm |
| Material | Polyamide / Nylon 6.6 (PA66) |
| Flammability | UL 94 V-2 |
| Operating Temp. | -10 C to +85 C |
