Description
Technical Specifications
Based on industrial standards such as IS: 9926, a single strand of 30 SWG tinned copper wire typically provides:
-
Approx. Fusing Current: ~14 Amps to 15 Amps. This is the current at which the wire will melt to break the circuit.
-
Safe Current Rating: 5 Amps. It is the industry-standard choice for 5A Kit-Kat style porcelain fuse carriers used in domestic lighting.
-
Resistance at 20°C: Approximately $0.22$ to $0.24$ $\Omega/m$.
-
Material: High-purity copper with a tin coating to prevent oxidation and ensure reliable electrical contact.
Common Applications
-
Domestic Lighting: The most common use is protecting 5A lighting circuits in homes and offices.
-
Internal Equipment Fuses: Used in older appliances that require a replaceable wire fuse for low-load internal sub-circuits.
-
Precision Electronics: Often used by hobbyists for DIY projects where a predictable, low-current fail point is necessary.
Product Recommendations

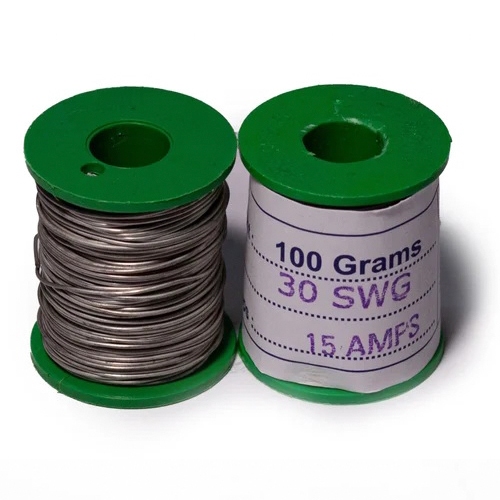

You can find 30 SWG fuse wire in professional 1kg reels or smaller maintenance rolls.
The 30 SWG Tinned Copper Fuse Wire is a high-quality industrial option. It is designed for consistent performance in porcelain fuse bases and is typically available in 1kg reels for electrical contractors.
For smaller repair tasks or keeping in a toolkit, the 30 SWG Tinned Copper Wire is a practical choice. The tinning makes it highly resistant to corrosion and very easy to solder for electronic applications.
Installation Best Practices
-
Clean Terminals: Always use a screwdriver to scrape away black carbon deposits from the brass terminals of the fuse holder before fitting new wire.
-
Check the Load: Ensure the total wattage on the circuit doesn’t exceed 5 Amps (approx. 1150W at 230V). Overloading will cause the fuse to “nuisance blow” frequently.
-
Avoid Over-Tension: Do not pull the wire perfectly tight. Leave a tiny amount of slack so the wire can expand as it warms up under normal load without snapping mechanically.
