Description
Comparison & Technical Charts
Comparison: KSS CV-150 (3.6mm) vs. Other Sizes
| Feature | KSS (100×2.5) | KSS CV-150 (3.6mm) | KSS (200×4.8) |
| Tensile Strength | 8.1 kg (18 lbs) | 18.2 kg (40 lbs) | 22.7 kg (50 lbs) |
| Max Bundle Dia. | 22 mm | 36 mm | 52 mm |
| Profile Class | Miniature | Intermediate | Heavy-Duty |
| Certifications | UL/CE | UL/DNV/CE/VDE | UL/CE |
| Primary Use | PCB / DIY | Industrial Panels / IT | Main Power Trunks |

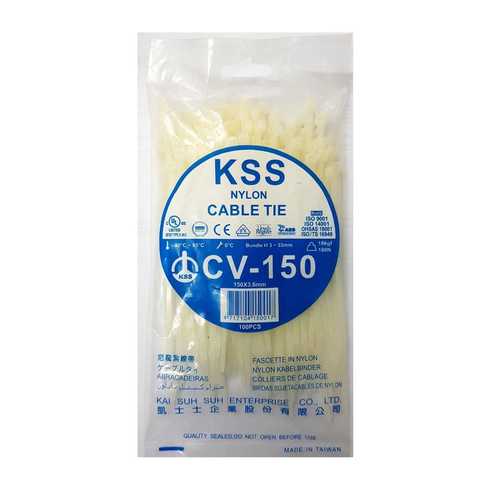

KSS CV-150 Technical Specifications
| Parameter | Value |
| Material | Nylon 6.6 (UL Approved) |
| Dimensions | 150 mm (L) X 3.6 mm (W) |
| Min. Tensile Strength | 18.2 kg / 40 lbs / 180 N |
| Max Bundle Diameter | 36 mm (1.4 inches) |
| Flammability | UL 94 V-2 |
| Pack Quantity | 100 Pieces per Bag |
Reviews
There are no reviews yet.
