Silica Gel Breather 2Kg Empty

Description

Core Components of a 2kg Breather

When you buy an empty unit, it typically includes:

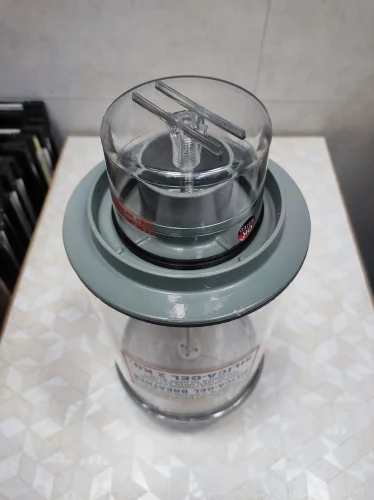

• The Cylinder: A clear, UV-stabilized polycarbonate or toughened glass tube designed to hold exactly 2kg of silica gel.

• The Oil Cup (Oil Seal): A small reservoir at the bottom. You fill this with transformer oil to act as a primary filter for dust and to prevent the silica gel from being constantly exposed to ambient humidity when the equipment isn’t “breathing.”

• The Cap & Base: Usually made of powder-coated aluminum or stainless steel with a threaded mounting (typically 1/2″ or 3/4″ BSP/NPT).

• Internal Hardware: A central tie-rod and gaskets to ensure the unit is airtight.²

Why Buy an Empty Unit?

1. Custom Desiccant Choice: You can choose between Orange (non-toxic, turns green when saturated) or Blue (contains cobalt chloride, turns pink) silica gel.

2. Replacement/Maintenance: Often, the original housing on a transformer becomes cracked or the gaskets fail, but the gel inside is still good. It is more cost-effective to replace just the housing.

3. Shipping Regulations: Shipping 2kg of silica gel can sometimes be classified differently than shipping a simple mechanical part; buying empty allows you to source the gel locally.

Technical Specifications
